EMINENT ENGINEERS


Vertical Magnetic Float Sensor (FS-37)


Vertical Magnetic Float Sensor (FS-37)

  • FS-37

  • FS-37 NC with Washer

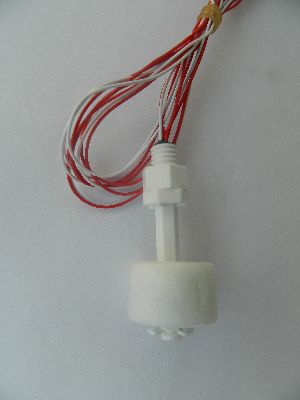

  • FS-37 Teflon Wire

  • FS-37 with Colored wire

  • FS-37 with Washer Weight

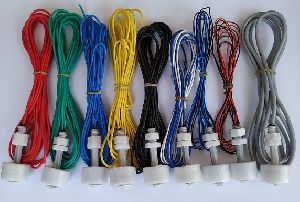

  • CUSTOMIZED FS-37



Looking for trusted Magnetic Float Sensor Vertical (FS-37) suppliers? We are the perfect ones and capable of fulfilling bulk orders. We are a quality conscious company and thus, we make certain that the quality of our product basket is superior and excellent.


Additional Information

Min. Order Quantity 100 Piece(s)


Specification

Electrical Characteristics
Contact Form A (Normally Open)  & B (Normally Close) (Single Switch)
Contact Rating, Max 10 W (50 W on Demand)
Switching Voltage, Max 100 VDC
Switching Current, Max 0.5 Amp DC
Ideal Operational Rating <36VDC and <50mAmp DC
Life expectancy- Switching cycles, Minimum 0.5 x106
Installation Vertical
Wire length 2 meters
Customization Available on Demand
Material
Housing PP (& Stainless Steel)
Float PP Foam (& Stainless Steel)
Potting PU/ Epoxy
Basic Price(Exclusive of GST 18%)
Rs.67/- Per Piece (Min. Qty.- 100 Pieces)
