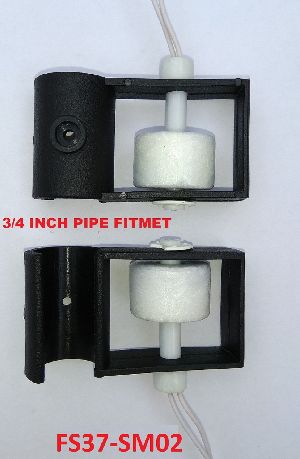

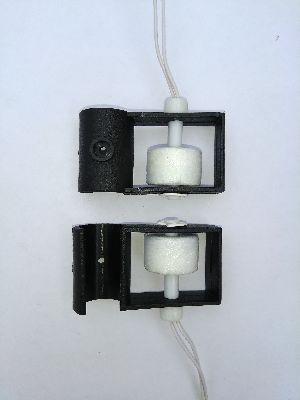

Side Mounted Magnetic Float Sensor (FS37-SM02)


Side Mounted Magnetic Float Sensor (FS37-SM02)

  • FS37-SM02

  • FS37-SM02



It is used with Water level detection process.

It can be mounted with 3//4 inch pipe.

Available in Type NO and NC both


Additional Information

Min. Order Quantity 100 Piece(s)


Specification

Electrical Characteristics
Contact Form A (Normally Open)  & B (Normally Close) (Single Switch)
Contact Rating, Max 10 W (50 W on Demand)
Switching Voltage, Max 100 VDC
Switching Current, Max 0.5 Amp DC
Ideal Operational Rating <10VDC and <50mAmp DC
Life expectancy- Switching cycles, Minimum 0.5 x106
Installation Horizontal
Wire length 2 meters
Material
Housing PP
Float PP Foam (& Stainless Steel)
Potting PU/ Epoxy
Basic Price(Exclusive of GST 18%)
Rs.65/- Per Piece (Min. Qty.- 100 Pieces)
Remark It is side mounted switch with ¾ inch pipe
